Flame View Heater

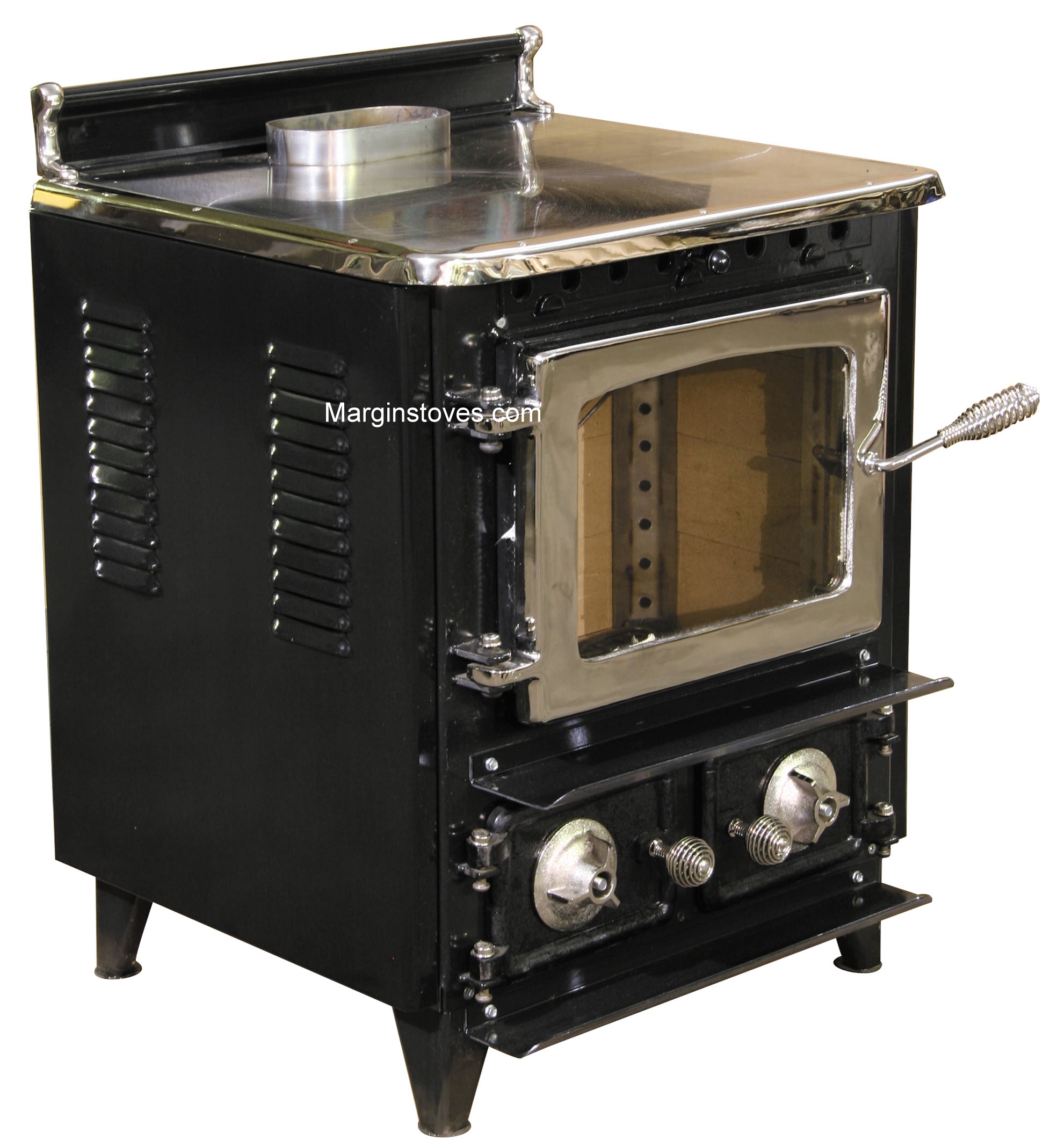

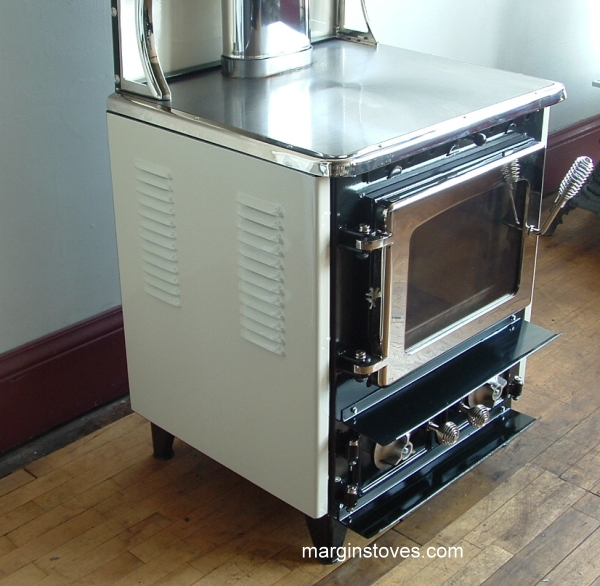

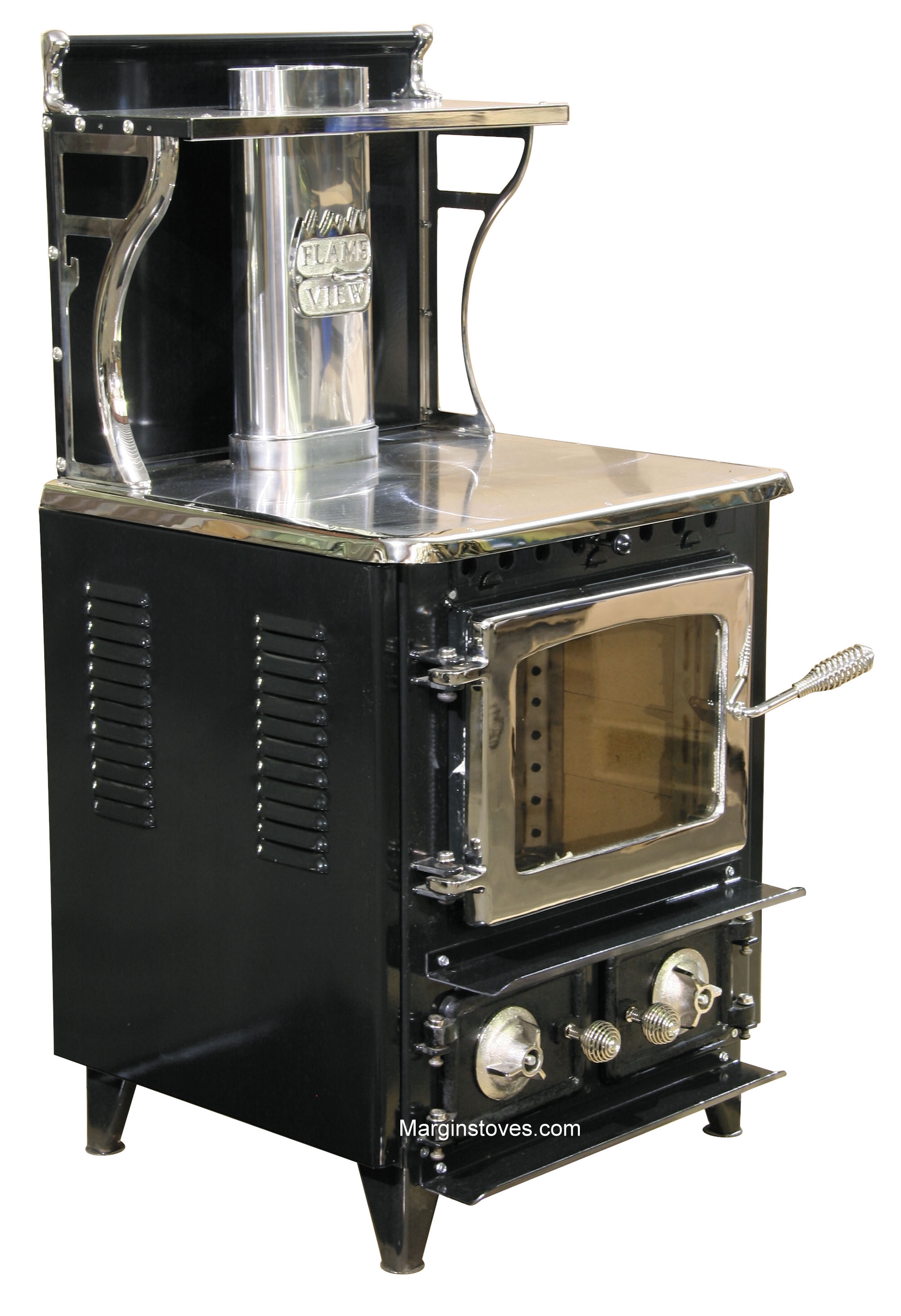

Flame View Heater Model 2015 (Full Closet) Unit Overall Width 29", Unit
overall Height 64" Height to cooking surface 34-1/2" , Cooking top size 23x27,
Fire box Size 22" L 12" W , 18" D, Exhaust Flue Size 7", Approx Heating Capacity
1800 Sq. Ft., Approx Shipping Weight 425 Lbs.
STANDARD FLAME HEATER VIEW FEATURES INCLUDE:
- Heating capacity of 2,000 square feet or more

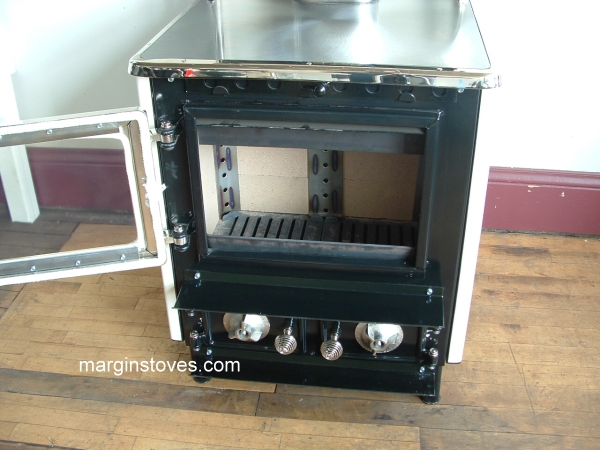

- Large, airtight firebox will take up to a 22 inch log for
an all night burn
- Side load firebox enables you to keep cooking or canning
without moving pots
- High-temperature glass firebox door lets you watch and
enjoy the fire

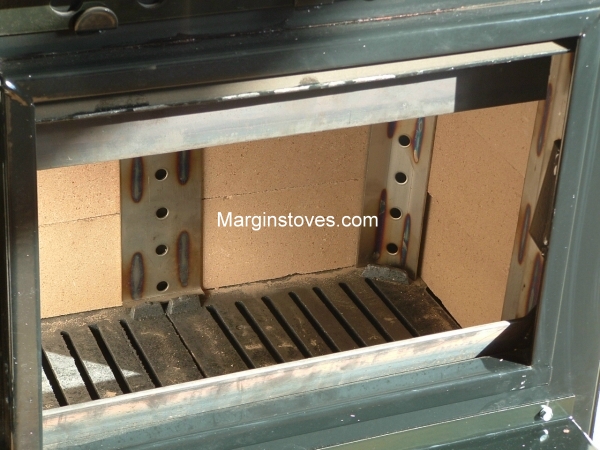

- Takes standard firebrick that is inexpensive and easy to
replace and install
- Dual bell draft supply for glass wash and fast start-up
- Double-plated steel cook top for a strong and evenly heated
cook top
- Cast iron wood grate system
- Exclusive "Air Jet" re-burn design

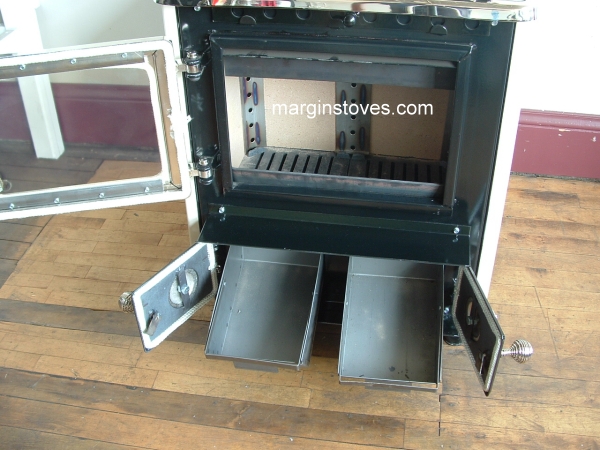

- Large ash trays below grates for convenient ash removal
- Porcelain exterior finish throughout, standard in black
- Porcelain black oven interior
- Nickel plated trim
- Oven draft control to circulate hot air around oven
- Ships with FREE Poker and ash scraper
- Limited one-year warranty
Safety tested to |
ULC-S627 |
|
ULC-S627 |
UL-1482 |
|
UL-1482 |
Minimum Clearances to Combustibles |
Back wall to unit 14" |
Back wall to pipe 15" |
Side wall to unit 12" |
Side wall to pipe 23" |
Fuel door to front wall 48" |
Margin Stoves, Flame View Heater Model |
|
PRICE |
|
No Top/No Back (4 inches above stove top)
|
|
Call for pricing |
|
FLAME VIEW HEATER OPTIONS |
|
|
Color: Black N/C |
|

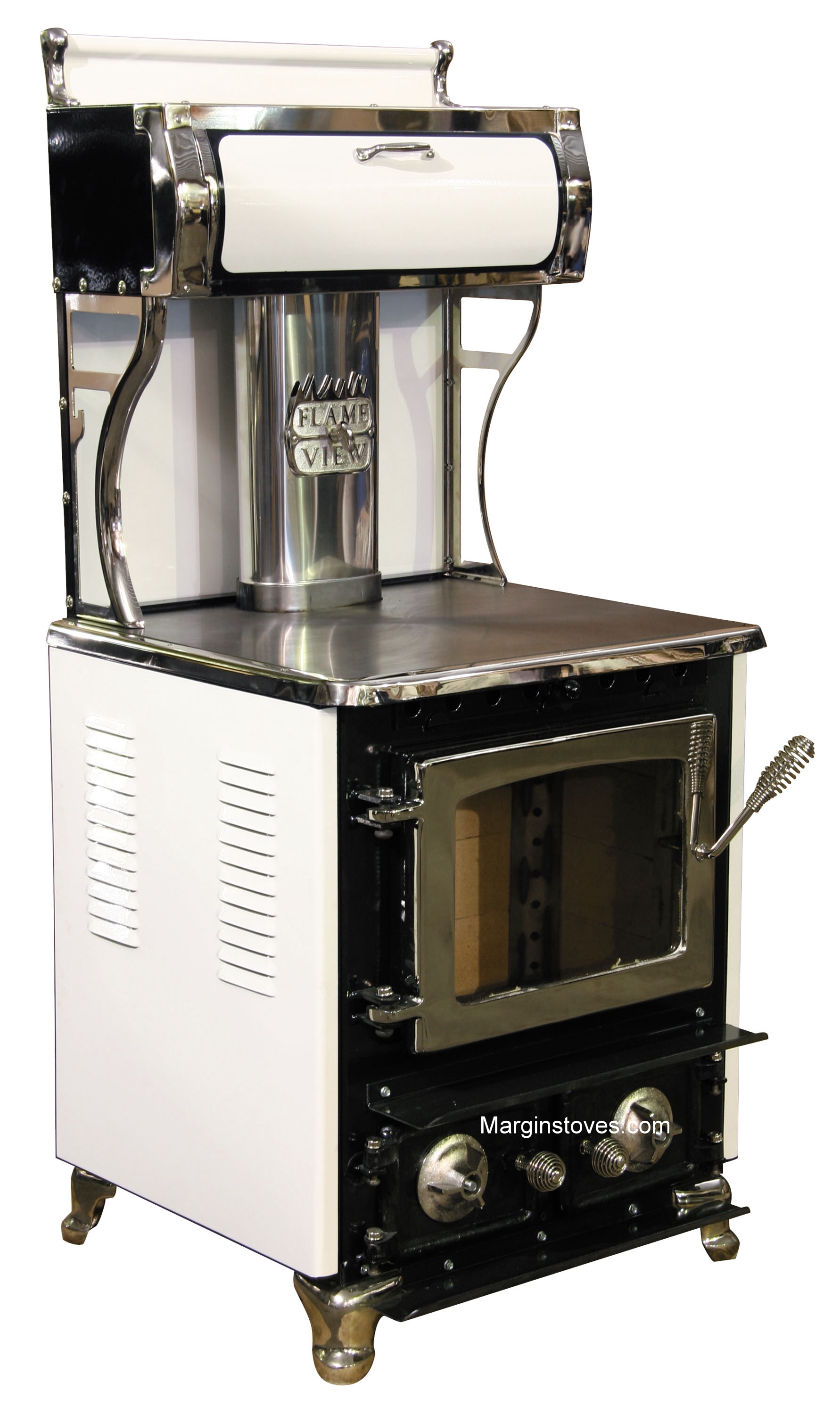

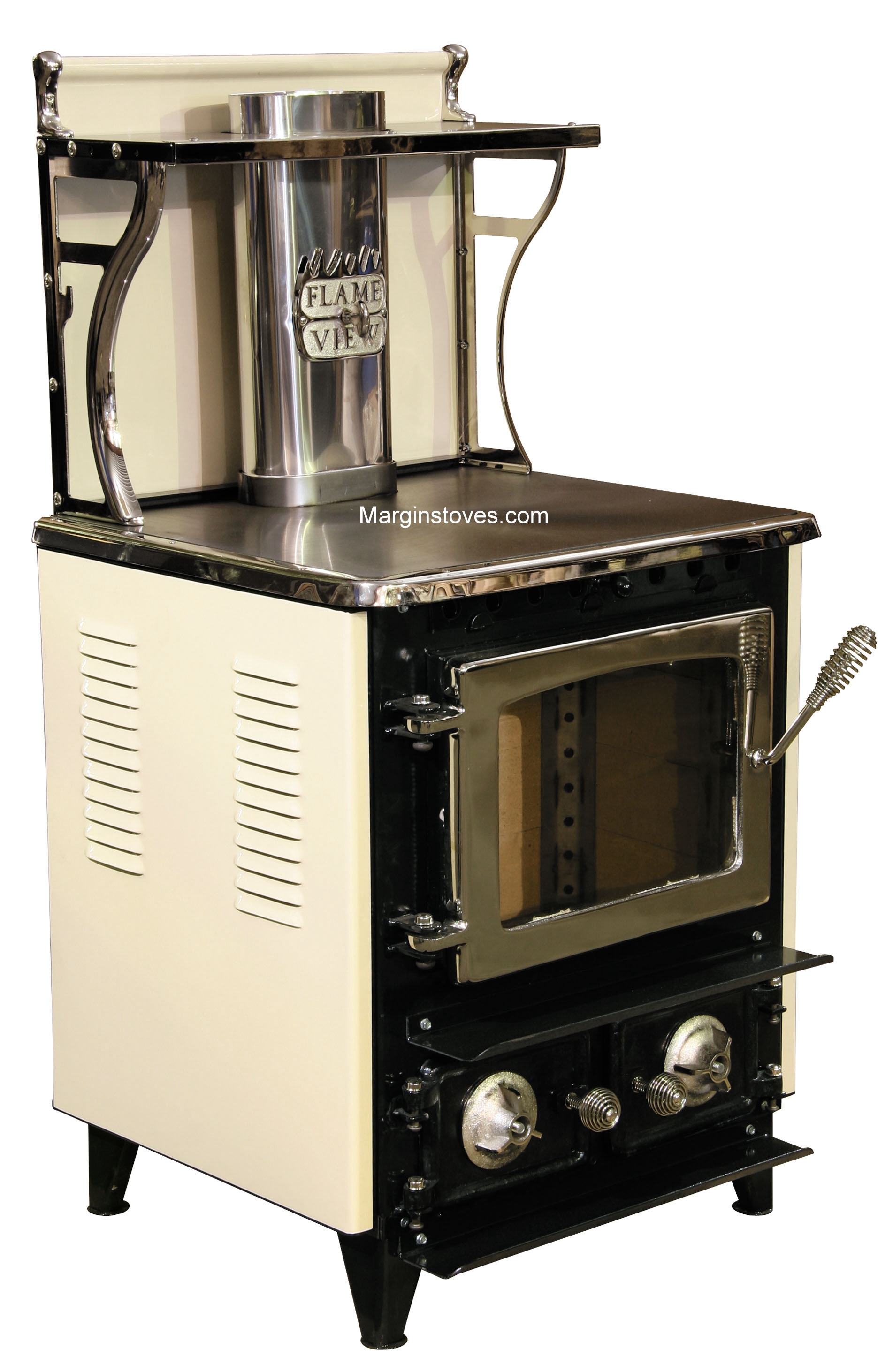

Color: White or Almond |
|
Single stainless steel hot water coil
|
|
Double stainless steel hot water coil
-80 Gallon plus heating capacity |
|
Ornamental Trivets |
|
Thermostat Control |
|
Nickel Legs |
|

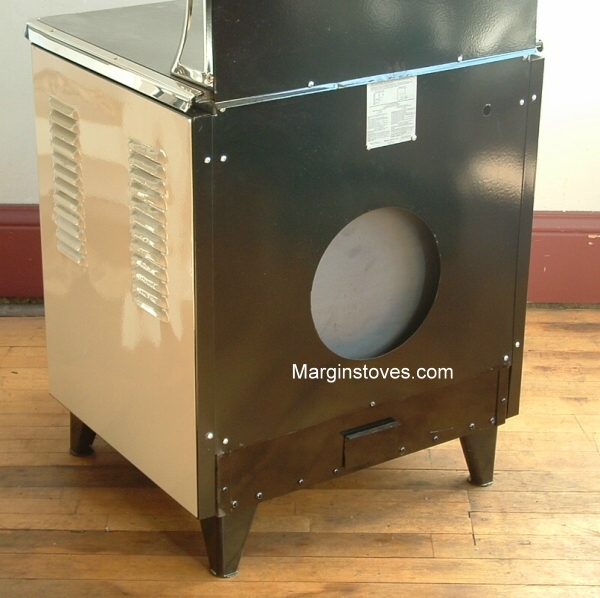

10" Electric Fan & Controls (fits
into the back of the stove and blows hot air out the vents in the stove
front and side panels) |
|
Flame View Heater Order or Shipping Quote Click Here
Margin Stove delivery time
Delivery time is running about
4-6 Weeks
|
